Servo-Hydraulic Injection Molding Machine | Energy-Efficient & High-Performance

Metric

Imperial

Clamping force(ton)
Tie-bar distance (H×V)(mm)
Shot weight(g) oz

rec.name — VsE Series

All-electric injection molding machine，50-580 ton

VsE / VαⅢ Series
VsE Series
VsE-50 Clamping force 50 ton Calculated injection capacity 38 - 49 cm³ Tie-bar distance (H×V) 360 x 360 mm	VsE-100 Clamping force 100 ton Calculated injection capacity 38 - 49 cm³ Tie-bar distance (H×V) 460 x 460 mm	VsE-130 Clamping force 130 ton Calculated injection capacity 38 - 49 cm³ Tie-bar distance (H×V) 510 x 510 mm	VsE-180 Clamping force 180 ton Calculated injection capacity 117 - 148 cm³ Tie-bar distance (H×V) 560 x 560 mm
VsE-350 Clamping force 350 ton Calculated injection capacity 471 - 570 - 748 cm³ Tie-bar distance (H×V) 810 x 760 mm	VsE-450 Clamping force 450 ton Calculated injection capacity 594 - 707 - 908 cm³ Tie-bar distance (H×V) 910 x 860 mm	VsE-580 Clamping force 580 ton Calculated injection capacity 905 - 1162 - 1452 cm³ Tie-bar distance (H×V) 1020 x 970 mm
VαⅢ Series

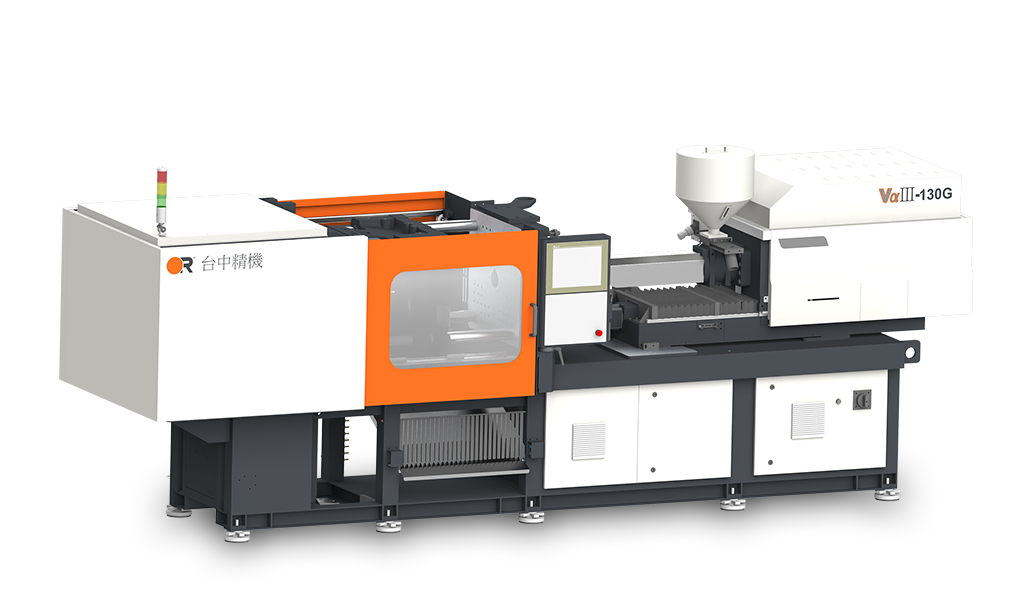

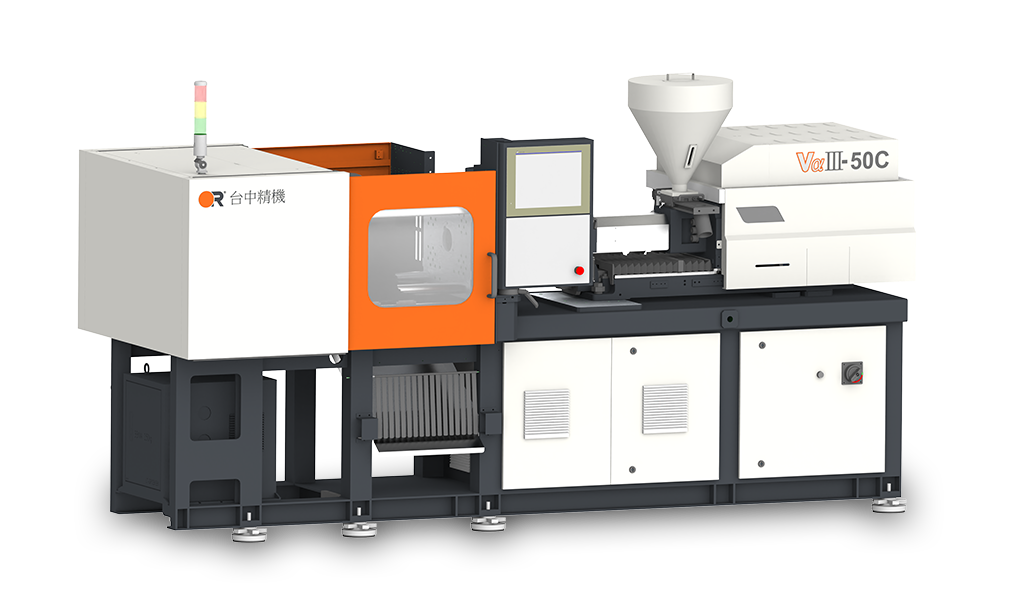

VαⅢ-50 Clamping force 50 ton Calculated injection capacity (Max) 80 cm³ Tie-bar distance 360 x 310 mm	VαⅢ-80 Clamping force 80 ton Calculated injection capacity (Max) 148 cm³ Tie-bar distance 410 × 360 mm	VαⅢ-100 Clamping force 100 ton Calculated injection capacity (Max) 148 cm³ Tie-bar distance 460 × 410 mm	VαⅢ-130 Clamping force 130 ton Calculated injection capacity (Max) 266 cm³ Tie-bar distance 510 × 460 mm

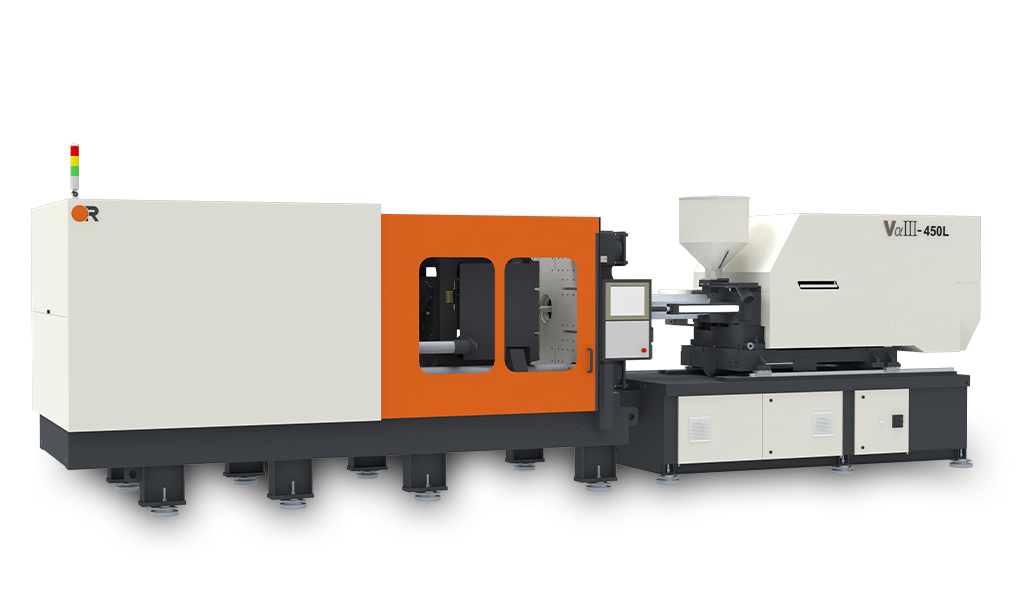

VαⅢ-180 Clamping force 180 ton Calculated injection capacity (Max) 475 cm³ Tie-bar distance 560 × 510 mm	VαⅢ-250 Clamping force 250 ton Calculated injection capacity (Max) 701 cm³ Tie-bar distance 610 × 560 mm	VαⅢ-350 Clamping force 350 ton Calculated injection capacity (Max) 908 cm³ Tie-bar distance 810 x 760 mm	VαⅢ-450 Clamping force 450 ton Calculated injection capacity (Max) 1452 cm³ Tie-bar distance 910 x 860 mm
