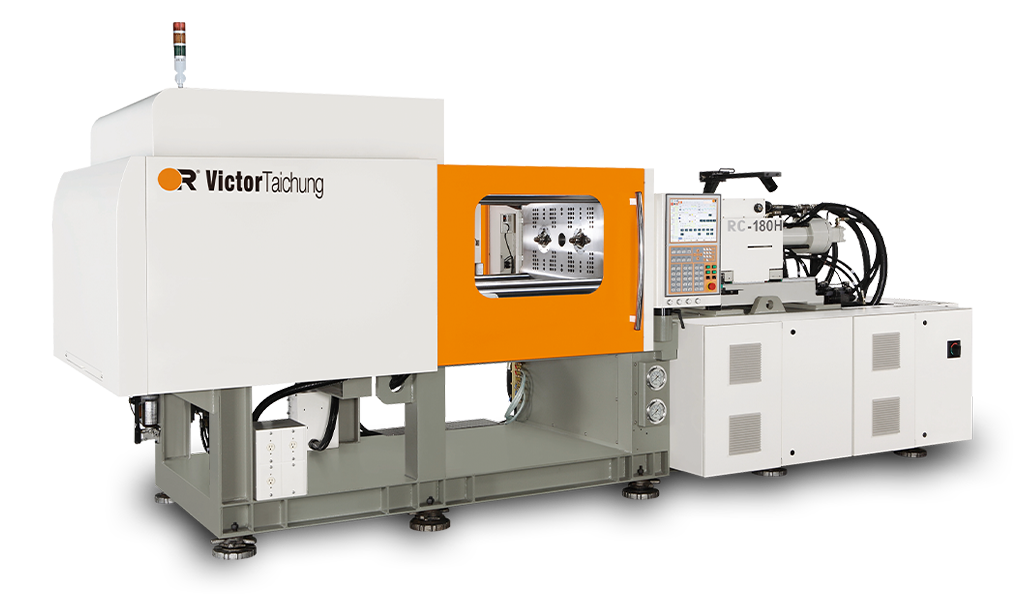

RC-180

Two Shot Injection Molding Machine RC

射座型式
- Y
- X
- K

This combination does not exist.

Add to Quote

Download

Specifications

Metric

Imperial

Add to Compare

Items

Unit

RC-180 (Y)

RC-180 (X)

RC-180 (K)

Injection Unit

Screw diameter

mm inch

16 - 19 0.62 - 0.74

22 - 25 0.86 - 0.98

28 - 32 - 36 1.1 - 1.25 - 1.41

Screw ratio(L/D)

23.8 - 20

22.7 - 20

22.9 - 20 - 17.8

Calculated injection capacity

cm³ in³

14.1 - 19.8 0.86 - 1.2

38 - 49.1 2.31 - 2.99

86.2 - 113 - 143 5.26 - 6.89 - 8.72

Screw stroke

mm inch

70 2.75

100 3.93

140 5.51

Total heating wattage

KW HP

2.7 3.61

5.4 7.23

5.85 7.84

Clamping Unit

Clamping force

ton U.S ton

180 198.41

Nozzle center height

mm inch

400 15.74

Clamp stroke

mm inch

450 17.71

Tie-bar distance (H×V)

mm inch

720 x 410 28.34 x 16.14

Rotary table diameter

mm inch

750 29.52

Mold thickness (Min-Max.)

mm inch

150 - 550 5.9 - 21.65

Ejector stroke

mm inch

75 2.95

General

Servo motor (Standard)

KW HP

11+11 14+14

Machine weight

ton U.S ton

12 13.22

Machine dimensions

mm inch

5160 x 2064 x 2208 203.14 x 81.25 x 86.92

Add to quote

Specifications

Filter
Clamping force(ton)		180
Tie-bar distance (H×V)(mm)		720 x 410

Injection Unit
Screw diameter	mm inch	16 - 19 0.62 - 0.74
Screw ratio(L/D)		23.8 - 20
Calculated injection capacity	cm³ in³	14.1 - 19.8 0.86 - 1.2
Screw stroke	mm inch	70 2.75
Total heating wattage	KW HP	2.7 3.61

Clamping Unit
Clamping force	ton U.S ton	180 198.41
Nozzle center height	mm inch	400 15.74
Clamp stroke	mm inch	450 17.71
Tie-bar distance (H×V)	mm inch	720 x 410 28.34 x 16.14
Rotary table diameter	mm inch	750 29.52
Mold thickness (Min-Max.)	mm inch	150 - 550 5.9 - 21.65
Ejector stroke	mm inch	75 2.95
