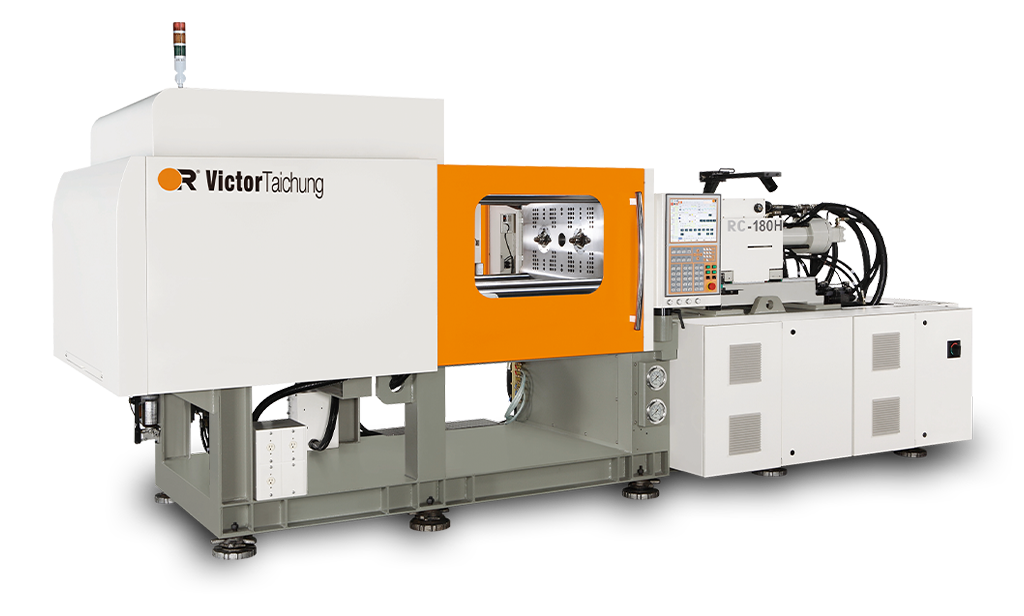

RC-180
180 (Y)
Two Shot Injection Molding Machine RC
Specifications
Add to
Compare
Items
Unit
Injection Unit
Screw diameter
mm
inch
16 - 19
0.62 - 0.74
22 - 25
0.86 - 0.98
28 - 32 - 36
1.1 - 1.25 - 1.41
Screw ratio(L/D)
23.8 - 20
22.7 - 20
22.9 - 20 - 17.8
Calculated injection capacity
cm³
in³
14.1 - 19.8
0.86 - 1.2
38 - 49.1
2.31 - 2.99
86.2 - 113 - 143
5.26 - 6.89 - 8.72
Screw stroke
mm
inch
70
2.75
100
3.93
140
5.51
Total heating wattage
KW
HP
2.7
3.61
5.4
7.23
5.85
7.84
Clamping Unit
Clamping force
ton
U.S ton
180
198.41
180
198.41
180
198.41
Nozzle center height
mm
inch
400
15.74
400
15.74
400
15.74
Clamp stroke
mm
inch
450
17.71
450
17.71
450
17.71
Tie-bar distance (H×V)
mm
inch
720 x 410
28.34 x 16.14
720 x 410
28.34 x 16.14
720 x 410
28.34 x 16.14
Rotary table diameter
mm
inch
750
29.52
750
29.52
750
29.52
Mold thickness (Min-Max.)
mm
inch
150 - 550
5.9 - 21.65
150 - 550
5.9 - 21.65
150 - 550
5.9 - 21.65
Ejector stroke
mm
inch
75
2.95
75
2.95
75
2.95
General
Servo motor (Standard)
KW
HP
11+11
14+14
11+11
14+14
11+11
14+14
Machine weight
ton
U.S ton
12
13.22
12
13.22
12
13.22
Machine dimensions
mm
inch
5160 x 2064 x 2208
203.14 x 81.25 x 86.92
5160 x 2064 x 2208
203.14 x 81.25 x 86.92
5160 x 2064 x 2208
203.14 x 81.25 x 86.92
Add to Inquiry
Specifications
180 (K)
| Filter | ||
|---|---|---|
| Clamping force(ton) | 180 | |
| Tie-bar distance (H×V)(mm) | 720 x 410 | |
| Injection Unit | ||
|---|---|---|
| Screw diameter | mm inch | 0.62 - 0.74 16 - 19 |
| Screw ratio(L/D) | 23.8 - 20 | |
| Calculated injection capacity | cm³ in³ | 0.86 - 1.2 14.1 - 19.8 |
| Screw stroke | mm inch | 2.75 70 |
| Total heating wattage | KW HP | 3.61 2.7 |
| Clamping Unit | ||
|---|---|---|
| Clamping force | ton U.S ton | 198.41 180 |
| Nozzle center height | mm inch | 15.74 400 |
| Clamp stroke | mm inch | 17.71 450 |
| Tie-bar distance (H×V) | mm inch | 28.34 x 16.14 720 x 410 |
| Rotary table diameter | mm inch | 29.52 750 |
| Mold thickness (Min-Max.) | mm inch | 5.9 - 21.65 150 - 550 |
| Ejector stroke | mm inch | 2.95 75 |
| General | ||
|---|---|---|
| Servo motor (Standard) | KW HP | 14+14 11+11 |
| Machine weight | ton U.S ton | 13.22 12 |
| Machine dimensions | mm inch | 203.14 x 81.25 x 86.92 5160 x 2064 x 2208 |
| Uncategorized | ||
|---|---|---|
| 射座型式 | K | |
