RC-220

220 (X)
https://machine-tools.victortaichung.com/web/image/product.template/186/image_1920?unique=ede731c

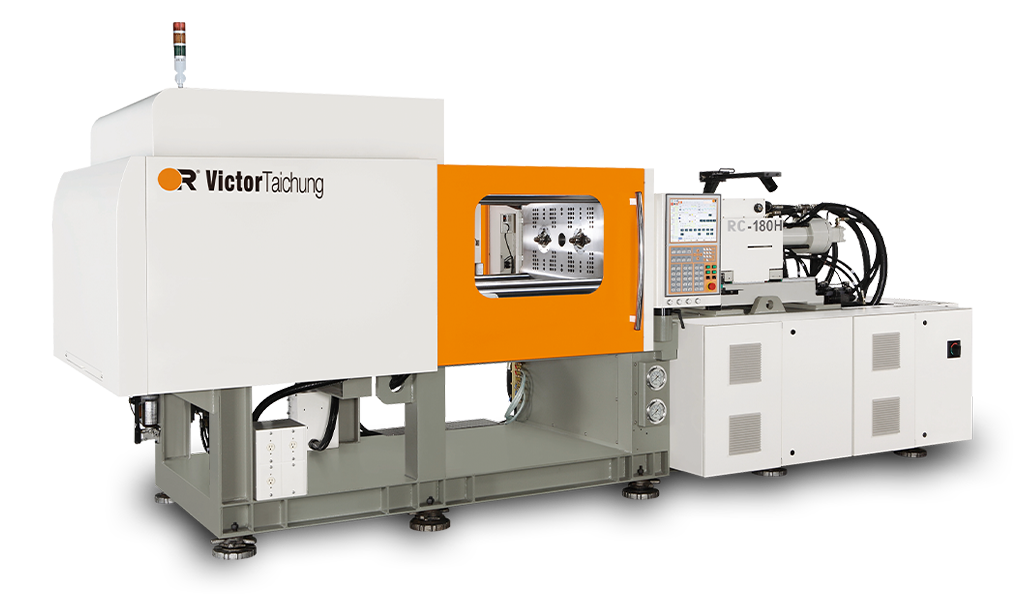

Two Shot Injection Molding Machine RC

  • 射座型式

This combination does not exist.

Specifications

Previous
Next
Add to Compare
Items
Unit
Injection Unit
Screw diameter
mm inch
22 - 25 0.86 - 0.98
28 - 32 - 36 1.1 - 1.25 - 1.41
32 - 36 - 40 1.25 - 1.41 - 1.57
Screw ratio(L/D)
22.7 - 20
22. - 20 - 17.8
22.5 - 20 - 18
Calculated injection capacity
cm³ in³
38 - 49.1 2.31 - 2.99
86.2 - 113 - 143 5.26 - 6.89 - 8.72
129 - 163 - 201 7.87 - 9.94 - 12.26
Screw stroke
mm inch
100 3.93
140 5.51
160 6.29
Total heating wattage
KW HP
5.4 7.23
5.85 7.84
6.83 9.15
Clamping Unit
Clamping force
ton U.S ton
220 242.50
220 242.50
220 242.50
Nozzle center height
mm inch
450 17.71
450 17.71
450 17.71
Clamp stroke
mm inch
470 18.50
470 18.50
470 18.50
Tie-bar distance (H×V)
mm inch
820 x 460 32.28 x 18.11
820 x 460 32.28 x 18.11
820 x 460 32.28 x 18.11
Rotary table diameter
mm inch
900 35.43
900 35.43
900 35.43
Mold thickness (Min-Max.)
mm inch
100 - 500 3.93 - 19.68
100 - 500 3.93 - 19.68
100 - 500 3.93 - 19.68
Ejector stroke
mm inch
130 5.11
130 5.11
130 5.11
General
Servo motor (Standard)
KW HP
11+11 14+14
11+11 14+14
11+11 14+14
Machine weight
ton U.S ton
14 15.43
14 15.43
14 15.43
Machine dimensions
mm inch
5578 x 2192 x 2310 219.6 x 86.29 x 90.94
5578 x 2192 x 2310 219.6 x 86.29 x 90.94
5578 x 2192 x 2310 219.6 x 86.29 x 90.94
Add to Inquiry
Add to Inquiry
Add to Inquiry
Add to Inquiry

Specifications

220 (H)
Filter
Clamping force(ton) 220
Tie-bar distance (H×V)(mm) 820 x 460
Injection Unit
Screw diameter mm inch 0.86 - 0.98 22 - 25
Screw ratio(L/D) 22.7 - 20
Calculated injection capacity cm³ in³ 2.31 - 2.99 38 - 49.1
Screw stroke mm inch 3.93 100
Total heating wattage KW HP 7.23 5.4
Clamping Unit
Clamping force ton U.S ton 242.50 220
Nozzle center height mm inch 17.71 450
Clamp stroke mm inch 18.50 470
Tie-bar distance (H×V) mm inch 32.28 x 18.11 820 x 460
Rotary table diameter mm inch 35.43 900
Mold thickness (Min-Max.) mm inch 3.93 - 19.68 100 - 500
Ejector stroke mm inch 5.11 130
General
Servo motor (Standard) KW HP 14+14 11+11
Machine weight ton U.S ton 15.43 14
Machine dimensions mm inch 219.6 x 86.29 x 90.94 5578 x 2192 x 2310
Uncategorized
射座型式 H
