RC-220

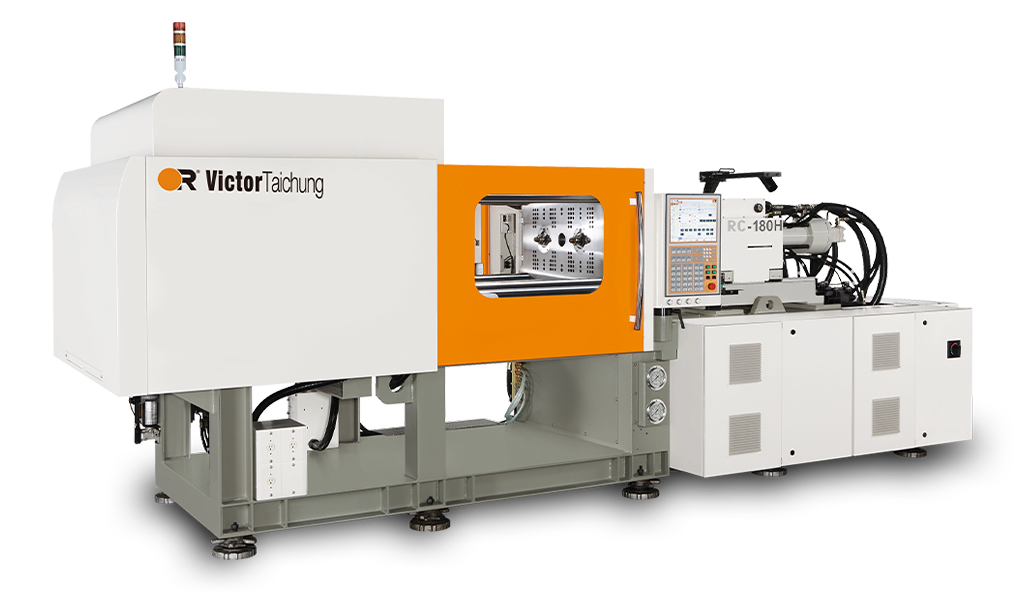

Two Shot Injection Molding Machine RC

射座型式
- X
- K
- H

This combination does not exist.

Add to Quote

Download

Specifications

Metric

Imperial

Add to Compare

Items

Unit

RC-220 (X)

RC-220 (K)

RC-220 (H)

Injection Unit

Screw diameter

mm inch

22 - 25 0.86 - 0.98

28 - 32 - 36 1.1 - 1.25 - 1.41

32 - 36 - 40 1.25 - 1.41 - 1.57

Screw ratio(L/D)

22.7 - 20

22. - 20 - 17.8

22.5 - 20 - 18

Calculated injection capacity

cm³ in³

38 - 49.1 2.31 - 2.99

86.2 - 113 - 143 5.26 - 6.89 - 8.72

129 - 163 - 201 7.87 - 9.94 - 12.26

Screw stroke

mm inch

100 3.93

140 5.51

160 6.29

Total heating wattage

KW HP

5.4 7.23

5.85 7.84

6.83 9.15

Clamping Unit

Clamping force

ton U.S ton

220 242.50

Nozzle center height

mm inch

450 17.71

Clamp stroke

mm inch

470 18.50

Tie-bar distance (H×V)

mm inch

820 x 460 32.28 x 18.11

Rotary table diameter

mm inch

900 35.43

Mold thickness (Min-Max.)

mm inch

100 - 500 3.93 - 19.68

Ejector stroke

mm inch

130 5.11

General

Servo motor (Standard)

KW HP

11+11 14+14

Machine weight

ton U.S ton

14 15.43

Machine dimensions

mm inch

5578 x 2192 x 2310 219.6 x 86.29 x 90.94

Add to quote

Specifications

Filter
Clamping force(ton)		220
Tie-bar distance (H×V)(mm)		820 x 460

Injection Unit
Screw diameter	mm inch	22 - 25 0.86 - 0.98
Screw ratio(L/D)		22.7 - 20
Calculated injection capacity	cm³ in³	38 - 49.1 2.31 - 2.99
Screw stroke	mm inch	100 3.93
Total heating wattage	KW HP	5.4 7.23

Clamping Unit
Clamping force	ton U.S ton	220 242.50
Nozzle center height	mm inch	450 17.71
Clamp stroke	mm inch	470 18.50
Tie-bar distance (H×V)	mm inch	820 x 460 32.28 x 18.11
Rotary table diameter	mm inch	900 35.43
Mold thickness (Min-Max.)	mm inch	100 - 500 3.93 - 19.68
Ejector stroke	mm inch	130 5.11
