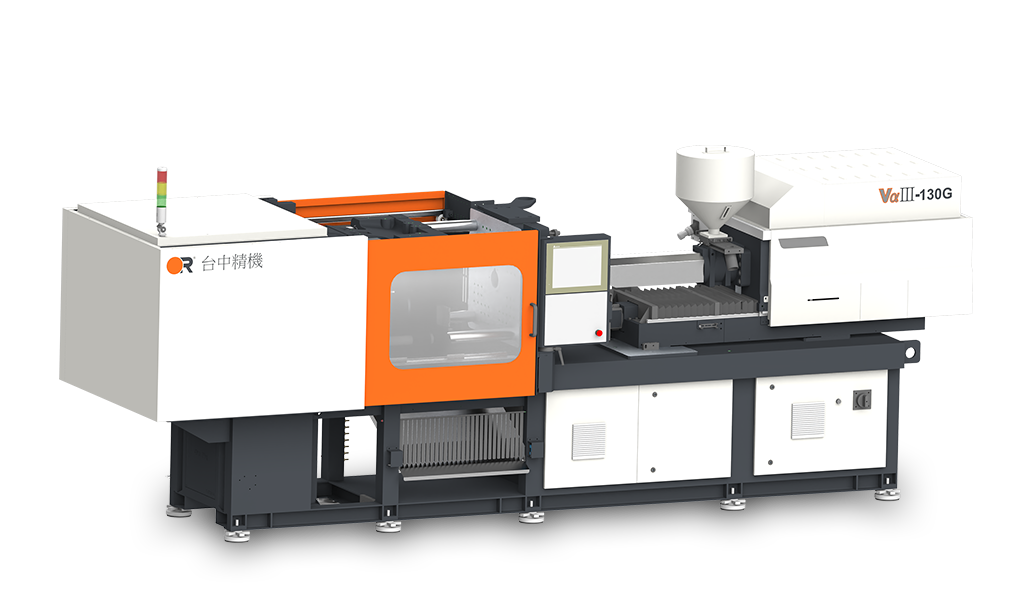

VαⅢ-130

130 (F)
https://www.victortaichung.com/web/image/product.template/99/image_1920?unique=cd66707

All-Electric Injection Molding Machine VαⅢ

  • 射出單元

This combination does not exist.

Specifications

Previous
Next
Add to Compare
Items
Unit
Injection Unit
Calculated injection capacity
cm³ in³
117 - 148 7.13 - 9.03
163 - 201 - 266 9.94 - 12.26 - 16.23
Screw diameter
mm inch
32 - 36 1.25 - 1.41
36 - 40 - 46 1.41 - 1.57 - 1.81
Screw stroke
mm inch
145 5.70
160 6.29
Actual shot weight-PS
g oz
110 - 139 3.9 - 4.9
153 - 189 - 250 5.4 - 6.7 - 8.8
Clamping Unit
Clamping force
ton U.S ton
130 143.30
130 143.30
Clamp stroke
mm inch
400 15.74
400 15.74
Platen dimension
mm inch
720 × 685 28.34 x 26.96
720 × 685 28.34 x 26.96
Open daylight-Max.
mm inch
850 33.46
850 33.46
Mold thickness (Min-Max.)
mm inch
180 - 450 7.08 - 17.71
180 - 450 7.08 - 17.71
Tie-bar distance
mm inch
510 × 460 20.07 x 18.11
510 × 460 20.07 x 18.11
Ejector stroke
mm inch
110 4.33
110 4.33
General
Machine weight
ton U.S ton
6.5 7.16
6.5 7.16
Machine dimensions
mm inch
5282 x 1441 x 2185 207.95 x 56.73 x 86.02
5282 x 1441 x 2185 207.95 x 56.73 x 86.02
Add to Inquiry
Add to Inquiry
Add to Inquiry

Specifications

130 (G)
Filter
Clamping force(ton) 130
Tie-bar distance (H×V)(mm) 510 × 460
Shot weight(g) oz 110 - 139 3.9 - 4.9
Injection Unit
Calculated injection capacity cm³ in³ 117 - 148 7.13 - 9.03
Screw diameter mm inch 32 - 36 1.25 - 1.41
Screw stroke mm inch 145 5.70
Actual shot weight-PS g oz 110 - 139 3.9 - 4.9
Clamping Unit
Clamping force ton U.S ton 130 143.30
Clamp stroke mm inch 400 15.74
Platen dimension mm inch 720 × 685 28.34 x 26.96
Open daylight-Max. mm inch 850 33.46
Mold thickness (Min-Max.) mm inch 180 - 450 7.08 - 17.71
Tie-bar distance mm inch 510 × 460 20.07 x 18.11
Ejector stroke mm inch 110 4.33
General
Machine weight ton U.S ton 6.5 7.16
Machine dimensions mm inch 5282 x 1441 x 2185 207.95 x 56.73 x 86.02
Uncategorized
射出單元 G
