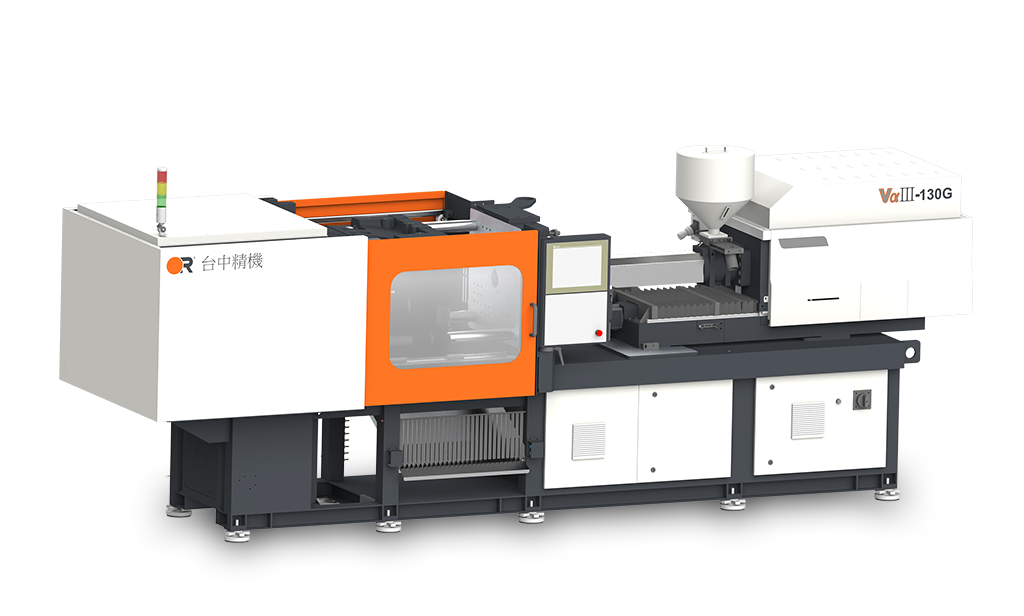

VαⅢ-130

All-Electric Injection Molding Machine VαⅢ

射出單元
- F
- G

This combination does not exist.

Add to Quote

Download

Specifications

Metric

Imperial

Add to Compare

Items

Unit

VαⅢ-130 (F)

VαⅢ-130 (G)

Injection Unit

Calculated injection capacity

cm³ in³

117 - 148 7.13 - 9.03

163 - 201 - 266 9.94 - 12.26 - 16.23

Screw diameter

mm inch

32 - 36 1.25 - 1.41

36 - 40 - 46 1.41 - 1.57 - 1.81

Screw stroke

mm inch

145 5.70

160 6.29

Actual shot weight-PS

g oz

110 - 139 3.9 - 4.9

153 - 189 - 250 5.4 - 6.7 - 8.8

Clamping Unit

Clamping force

ton U.S ton

130 143.30

Clamp stroke

mm inch

400 15.74

Platen dimension

mm inch

720 × 685 28.34 x 26.96

Open daylight-Max.

mm inch

850 33.46

Mold thickness (Min-Max.)

mm inch

180 - 450 7.08 - 17.71

Tie-bar distance

mm inch

510 × 460 20.07 x 18.11

Ejector stroke

mm inch

110 4.33

General

Machine weight

ton U.S ton

6.5 7.16

Machine dimensions

mm inch

5282 x 1441 x 2185 207.95 x 56.73 x 86.02

Add to quote

Specifications

Filter
Clamping force(ton)		130
Tie-bar distance (H×V)(mm)		510 × 460
Shot weight(g)	oz	110 - 139 3.9 - 4.9

Injection Unit
Calculated injection capacity	cm³ in³	117 - 148 7.13 - 9.03
Screw diameter	mm inch	32 - 36 1.25 - 1.41
Screw stroke	mm inch	145 5.70
Actual shot weight-PS	g oz	110 - 139 3.9 - 4.9

Clamping Unit
Clamping force	ton U.S ton	130 143.30
Clamp stroke	mm inch	400 15.74
Platen dimension	mm inch	720 × 685 28.34 x 26.96
Open daylight-Max.	mm inch	850 33.46
Mold thickness (Min-Max.)	mm inch	180 - 450 7.08 - 17.71
Tie-bar distance	mm inch	510 × 460 20.07 x 18.11
Ejector stroke	mm inch	110 4.33
