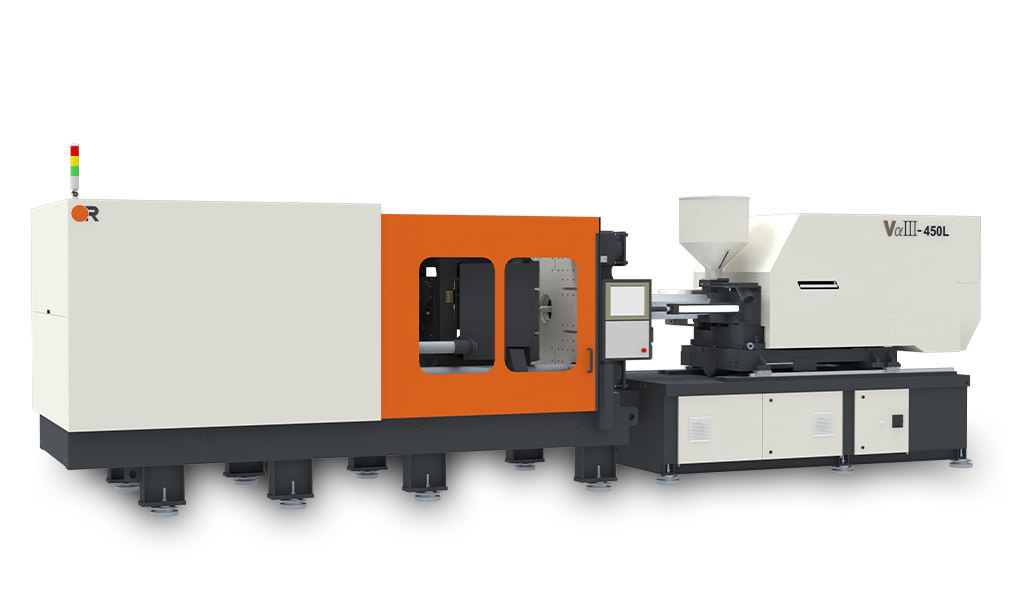

VαⅢ-450

All-Electric Injection Molding Machine VαⅢ

射出單元
- K
- L

This combination does not exist.

Add to Quote

Download

Specifications

Metric

Imperial

Add to Compare

Items

Unit

VαⅢ-450 (K)

VαⅢ-450 (L)

Injection Unit

Calculated injection capacity

cm³ in³

594 - 707 - 908 36.24 - 43.14 - 55.4

905 - 1162 - 1452 55.22 - 70.9 - 88.6

Screw diameter

mm inch

55 - 60 - 68 2.16 - 2.36 - 2.67

60 - 68 - 76 2.36 - 2.67 - 2.99

Screw stroke

mm inch

250 9.84

320 12.59

Actual shot weight-PS

g oz

557 - 663 - 851 19.6 - 23.3 - 30.0

848 - 1089 - 1361 29.9 - 38.4 - 47.9

Clamping Unit

Clamping force

ton U.S ton

450 496.04

Clamp stroke

mm inch

800 31.49

Platen dimension

mm inch

1180 x 1130 46.45 x 44.48

Open daylight-Max.

mm inch

1600 62.99

Mold thickness (Min-Max.)

mm inch

350 - 800 13.77 - 31.49

Tie-bar distance

mm inch

910 x 860 35.82 x 33.85

Ejector stroke

mm inch

220 8.66

General

Machine weight

ton U.S ton

24.5 (16.5+8)

Machine dimensions

mm inch

8.63 x 2.06 x 2.66 0.33 x 0.08 x 0.1

Add to quote

Specifications

Filter
Clamping force(ton)		450
Tie-bar distance (H×V)(mm)		910 × 860
Shot weight(g)	oz	557 - 663 - 851 19.6 - 23.3 - 30.0

Injection Unit
Calculated injection capacity	cm³ in³	594 - 707 - 908 36.24 - 43.14 - 55.4
Screw diameter	mm inch	55 - 60 - 68 2.16 - 2.36 - 2.67
Screw stroke	mm inch	250 9.84
Actual shot weight-PS	g oz	557 - 663 - 851 19.6 - 23.3 - 30.0

Clamping Unit
Clamping force	ton U.S ton	450 496.04
Clamp stroke	mm inch	800 31.49
Platen dimension	mm inch	1180 x 1130 46.45 x 44.48
Open daylight-Max.	mm inch	1600 62.99
Mold thickness (Min-Max.)	mm inch	350 - 800 13.77 - 31.49
Tie-bar distance	mm inch	910 x 860 35.82 x 33.85
Ejector stroke	mm inch	220 8.66
