VαⅢ-50
50 (C)

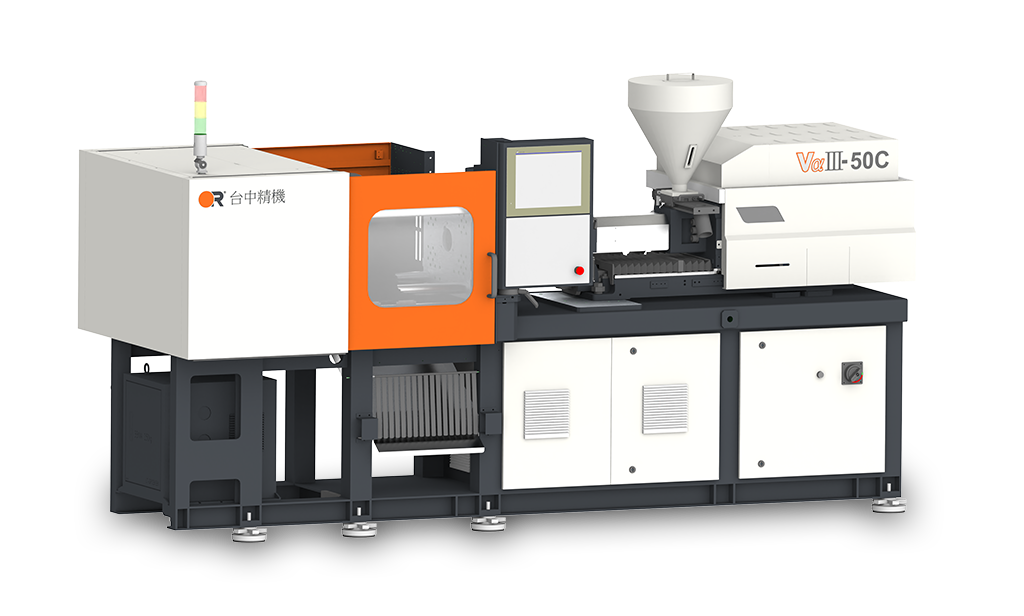

All-Electric Injection Molding Machine VαⅢ
Specifications
Add to
Compare
Items
Unit
Injection Unit
Calculated injection capacity
cm³
in³
34 - 48
2.07 - 2.92
62 - 80
3.78 - 4.88
Screw diameter
mm
inch
22 - 26
0.86 - 1.02
28 - 32
1.1 - 1.25
Screw stroke
mm
inch
90
3.54
100
3.93
Actual shot weight-PS
g
oz
32 - 45
1.1 - 1.6
58 - 76
2.0 - 2.7
Clamping Unit
Clamping force
ton
U.S ton
50
55.11
50
55.11
Clamp stroke
mm
inch
270
10.62
270
10.62
Platen dimension
mm
inch
505 x 502
19.88 x 19.76
505 x 502
19.88 x 19.76
Open daylight-Max.
mm
inch
620
24.40
620
24.40
Mold thickness (Min-Max.)
mm
inch
150 - 350
5.9 - 13.77
150 - 350
5.9 - 13.77
Tie-bar distance
mm
inch
360 x 310
14.17 x 12.2
360 x 310
14.17 x 12.2
Ejector stroke
mm
inch
70
2.75
70
2.75
General
Machine weight
ton
U.S ton
2.9
3.19
2.9
3.19
Machine dimensions
mm
inch
3672 x 1275 x 1981
144.56 x 50.19 x 77.99
3672 x 1275 x 1981
144.56 x 50.19 x 77.99
Uncategorized
射出單元
C
D
Add to Inquiry
Specifications
50 (D)
| Filter | ||
|---|---|---|
| Clamping force(ton) | 50 | |
| Tie-bar distance (H×V)(mm) | 505 × 502 | |
| Shot weight(g) | oz | 1.1 - 1.6 32 - 45 |
| Injection Unit | ||
|---|---|---|
| Calculated injection capacity | cm³ in³ | 2.07 - 2.92 34 - 48 |
| Screw diameter | mm inch | 0.86 - 1.02 22 - 26 |
| Screw stroke | mm inch | 3.54 90 |
| Actual shot weight-PS | g oz | 1.1 - 1.6 32 - 45 |
| Clamping Unit | ||
|---|---|---|
| Clamping force | ton U.S ton | 55.11 50 |
| Clamp stroke | mm inch | 10.62 270 |
| Platen dimension | mm inch | 19.88 x 19.76 505 x 502 |
| Open daylight-Max. | mm inch | 24.40 620 |
| Mold thickness (Min-Max.) | mm inch | 5.9 - 13.77 150 - 350 |
| Tie-bar distance | mm inch | 14.17 x 12.2 360 x 310 |
| Ejector stroke | mm inch | 2.75 70 |
| General | ||
|---|---|---|
| Machine weight | ton U.S ton | 3.19 2.9 |
| Machine dimensions | mm inch | 144.56 x 50.19 x 77.99 3672 x 1275 x 1981 |
| Uncategorized | ||
|---|---|---|
| 射出單元 | D | |
