VαⅢ-80

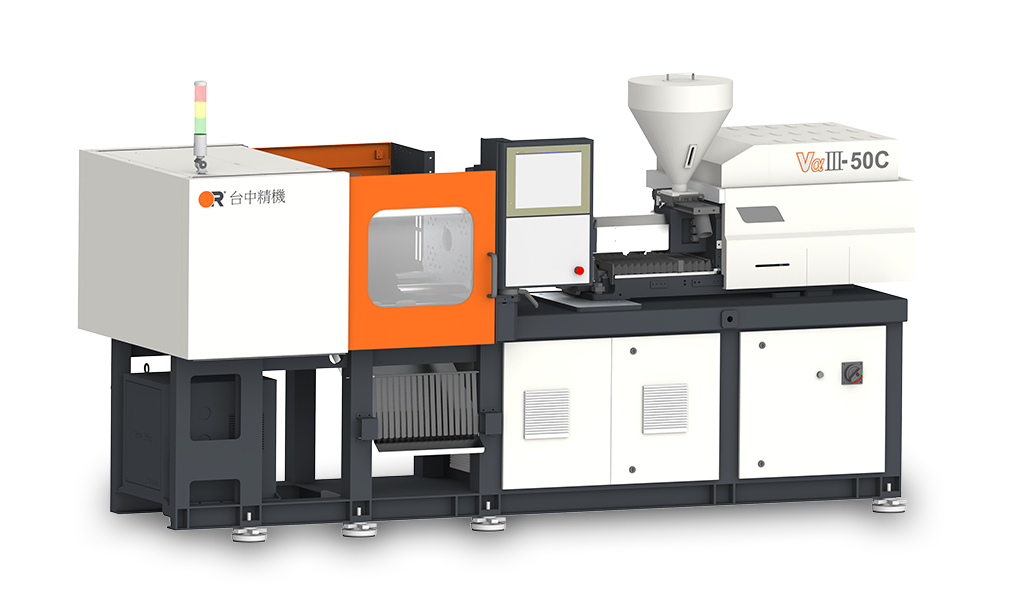

All-Electric Injection Molding Machine VαⅢ
Specifications
Add to
Compare
Items
Unit
Injection Unit
Calculated injection capacity
cm³
in³
62 - 80
3.78 - 4.88
117 - 148
7.13 - 9.03
Screw diameter
mm
inch
28 - 32
1.1 - 1.25
32 - 36
1.25 - 1.41
Screw stroke
mm
inch
100
3.93
145
5.70
Actual shot weight-PS
g
oz
58 - 76
2.0 - 2.7
110 - 139
3.9 - 4.9
Clamping Unit
Clamping force
ton
U.S ton
80
88.18
80
88.18
Clamp stroke
mm
inch
320
12.59
320
12.59
Platen dimension
mm
inch
585 × 530
23.03 x 20.86
585 × 530
23.03 x 20.86
Open daylight-Max.
mm
inch
700
27.55
700
27.55
Mold thickness (Min-Max.)
mm
inch
150 - 380
5.9 - 14.96
150 - 380
5.9 - 14.96
Tie-bar distance
mm
inch
410 × 360
16.14 x 14.17
410 × 360
16.14 x 14.17
Ejector stroke
mm
inch
80
3.14
80
3.14
General
Machine weight
ton
U.S ton
4.1
4.51
4.1
4.51
Machine dimensions
mm
inch
4232 x 1329 x 2018
166.61 x 52.32 x 79.44
4232 x 1329 x 2018
166.61 x 52.32 x 79.44
Add to quote
Specifications
| Filter | ||
|---|---|---|
| Clamping force(ton) | 80 | |
| Tie-bar distance (H×V)(mm) | 410 × 360 | |
| Shot weight(g) | oz | 58 - 76 2.0 - 2.7 |
| Injection Unit | ||
|---|---|---|
| Calculated injection capacity | cm³ in³ | 62 - 80 3.78 - 4.88 |
| Screw diameter | mm inch | 28 - 32 1.1 - 1.25 |
| Screw stroke | mm inch | 100 3.93 |
| Actual shot weight-PS | g oz | 58 - 76 2.0 - 2.7 |
| Clamping Unit | ||
|---|---|---|
| Clamping force | ton U.S ton | 80 88.18 |
| Clamp stroke | mm inch | 320 12.59 |
| Platen dimension | mm inch | 585 × 530 23.03 x 20.86 |
| Open daylight-Max. | mm inch | 700 27.55 |
| Mold thickness (Min-Max.) | mm inch | 150 - 380 5.9 - 14.96 |
| Tie-bar distance | mm inch | 410 × 360 16.14 x 14.17 |
| Ejector stroke | mm inch | 80 3.14 |
| General | ||
|---|---|---|
| Machine weight | ton U.S ton | 4.1 4.51 |
| Machine dimensions | mm inch | 4232 x 1329 x 2018 166.61 x 52.32 x 79.44 |
| Uncategorized | ||
|---|---|---|
| 射出單元 | F | |
