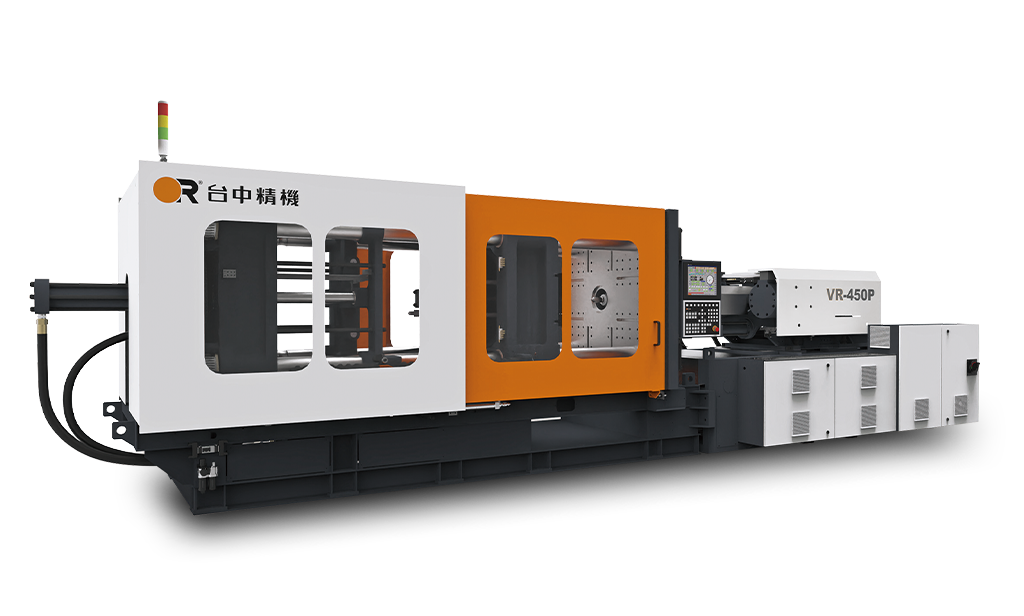

VR-450
High Speed Injection Molding Machine VR
Specifications
Add to
Compare
Items
Unit
Injection Model
Screw diameter
mm
inch
55 - 60 - 68
2.16 - 2.36 - 2.67
65 - 72 - 80
2.55 - 2.83 - 3.14
72 - 80 - 90
2.83 - 3.14 - 3.54
Calculated injection capacity
cm³
in³
570 - 679 - 872
34.78 - 41.43 - 53.21
946 - 1160 - 1433
57.72 - 70.78 - 87.44
1344 - 1659 - 2099
82.01 - 101.23 - 128.08
Actual shot weight-PS
g
oz
534 - 636 - 817
18.8 - 22.4 - 28.8
886 - 1088 - 1343
31.2 - 38.3 - 47.3
1259 - 1555 - 1968
44.3 - 54.7 - 69.3
Plastizing capacity
kg/hr
142 - 177 - 237
125 - 154 - 204
140 - 185 - 253
Screw L/D ratio
22 - 20 - 18
23 - 21 - 19
22 - 20 - 18
Screw stroke
mm
inch
240
9.44
285
11.22
330
12.99
Clamping Unit
Clamping force
ton
U.S ton
450
496.04
450
496.04
450
496.04
Clamp stroke - Max.
mm
inch
760
29.92
760
29.92
760
29.92
Platen dimension
mm
inch
1200 x 1200
47.24 x 47.24
1200 x 1200
47.24 x 47.24
1200 x 1200
47.24 x 47.24
Tie-bar distance (H×V)
mm
inch
780 x 780
30.7 x 30.7
780 x 780
30.7 x 30.7
780 x 780
30.7 x 30.7
Open daylight-Max.
mm
inch
1580
62.20
1580
62.20
1580
62.20
Mold thickness (Min-Max.)
mm
inch
300 - 820
11.81 - 32.28
300 - 820
11.81 - 32.28
300 - 820
11.81 - 32.28
Ejector stroke
mm
inch
180
7.08
180
7.08
180
7.08
General
Machine weight
ton
U.S ton
21
23.14
21
23.14
21
23.14
Machine dimensions
mm
inch
8745 x 2050 x 2353
344.29 x 80.7 x 92.63
8745 x 2050 x 2353
344.29 x 80.7 x 92.63
8745 x 2050 x 2353
344.29 x 80.7 x 92.63
Add to quote
Specifications
| Filter | ||
|---|---|---|
| Clamping force(ton) | 450 | |
| Tie-bar distance (H×V)(mm) | 780 × 780 | |
| Shot weight(g) | oz | 534 - 636 - 817 18.8 - 22.4 - 28.8 |
| Injection Model | ||
|---|---|---|
| Screw diameter | mm inch | 55 - 60 - 68 2.16 - 2.36 - 2.67 |
| Calculated injection capacity | cm³ in³ | 570 - 679 - 872 34.78 - 41.43 - 53.21 |
| Actual shot weight-PS | g oz | 534 - 636 - 817 18.8 - 22.4 - 28.8 |
| Plastizing capacity | 142 - 177 - 237 | |
| Screw L/D ratio | 22 - 20 - 18 | |
| Screw stroke | mm inch | 240 9.44 |
| Clamping Unit | ||
|---|---|---|
| Clamping force | ton U.S ton | 450 496.04 |
| Clamp stroke - Max. | mm inch | 760 29.92 |
| Platen dimension | mm inch | 1200 x 1200 47.24 x 47.24 |
| Tie-bar distance (H×V) | mm inch | 780 x 780 30.7 x 30.7 |
| Open daylight-Max. | mm inch | 1580 62.20 |
| Mold thickness (Min-Max.) | mm inch | 300 - 820 11.81 - 32.28 |
| Ejector stroke | mm inch | 180 7.08 |
| General | ||
|---|---|---|
| Machine weight | ton U.S ton | 21 23.14 |
| Machine dimensions | mm inch | 8745 x 2050 x 2353 344.29 x 80.7 x 92.63 |
| Uncategorized | ||
|---|---|---|
| Injection Model | P | |
