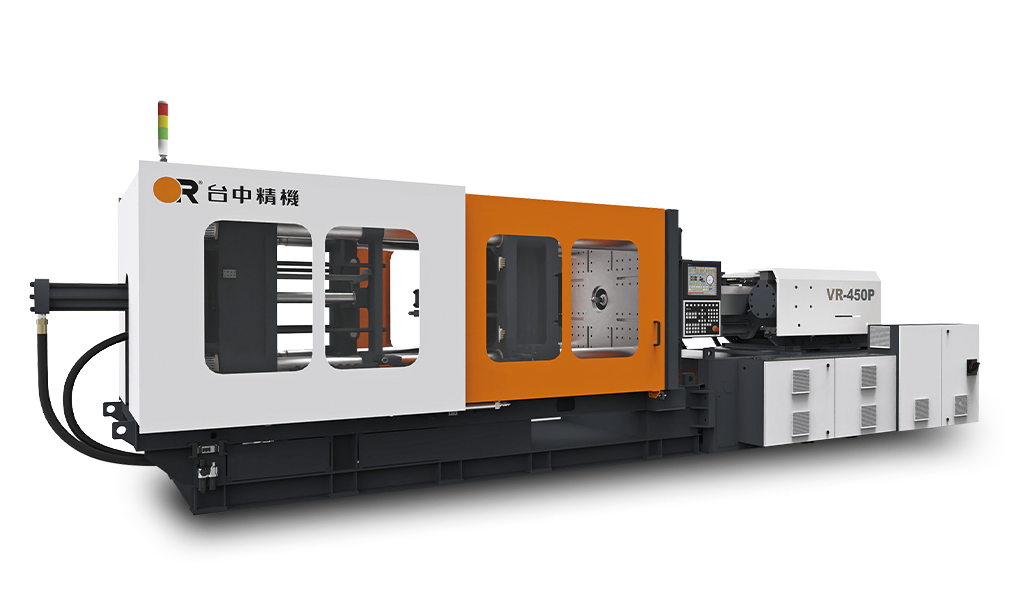

VR-850

850 (P)
https://www.victortaichung.com/web/image/product.template/121/image_1920?unique=ac0fe0f

High Speed Injection Molding Machine VR

  • Injection Model

This combination does not exist.

Specifications

Previous
Next
Add to Compare
Items
Unit
Injection Model
Calculated injection capacity
cm³ in³
1344 - 1659 - 2099 82.01 - 101.23 - 128.08
2011 - 2545 - 3142 122.71 - 155.3 - 191.73
2990 - 3691 - 4467 182.46 - 225.23 - 272.59
Actual shot weight-PS
g oz
1259 - 1555 - 1968 44.3 - 54.7 - 69.3
1885 - 2385 - 2945 66.4 - 84.0 - 103.7
2803 - 3460 - 4187 98.7 - 121.8 - 147.4
Plastizing capacity
kg/hr
266 - 352 - 481
314 - 429 - 589
266 - 364 - 465
Screw L/D ratio
22 - 20 - 18
23 - 21 - 19
22 - 20 - 18
Screw stroke
mm inch
330 12.99
400 15.74
470 18.50
Screw diameter
mm inch
72 - 80 - 90 2.83 - 3.14 - 3.54
80 - 90 - 100 3.14 - 3.54 - 3.93
90 - 100 - 110 3.54 - 3.93 - 4.33
Clamping Unit
Clamping force
ton U.S ton
850 936.96
850 936.96
850 936.96
Clamp stroke - Max.
mm inch
1000 39.37
1000 39.37
1000 39.37
Mold thickness (Min-Max.)
mm inch
450 - 1100 17.71 - 43.3
450 - 1100 17.71 - 43.3
450 - 1100 17.71 - 43.3
Platen dimension
mm inch
1600 x 1495 62.99 x 58.85
1600 x 1495 62.99 x 58.85
1600 x 1495 62.99 x 58.85
Tie-bar distance (H×V)
mm inch
1100 x 1000 43.3 x 39.37
1100 x 1000 43.3 x 39.37
1100 x 1000 43.3 x 39.37
Open daylight-Max.
mm inch
2100 82.67
2100 82.67
2100 82.67
Ejector stroke
mm inch
260 10.23
260 10.23
260 10.23
General
Machine weight
ton U.S ton
35.6 39.24
37.3 41.11
40.8 44.97
Machine dimensions
mm inch
10812 x 2500 x 2703 425.66 x 98.42 x 106.41
10812 x 2500 x 2703 425.66 x 98.42 x 106.41
10812 x 2500 x 2703 425.66 x 98.42 x 106.41
Uncategorized
Injection Model
P
R
S
Add to Inquiry
Add to Inquiry
Add to Inquiry
Add to Inquiry

Specifications

850 (S)
Filter
Clamping force(ton) 850
Tie-bar distance (H×V)(mm) 1100× 1100
Shot weight(g) oz 44.3 - 54.7 - 69.3 1259 - 1555 - 1968
Injection Model
Calculated injection capacity cm³ in³ 82.01 - 101.23 - 128.08 1344 - 1659 - 2099
Actual shot weight-PS g oz 44.3 - 54.7 - 69.3 1259 - 1555 - 1968
Plastizing capacity 266 - 352 - 481
Screw L/D ratio 22 - 20 - 18
Screw stroke mm inch 12.99 330
Screw diameter mm inch 2.83 - 3.14 - 3.54 72 - 80 - 90
Clamping Unit
Clamping force ton U.S ton 936.96 850
Clamp stroke - Max. mm inch 39.37 1000
Mold thickness (Min-Max.) mm inch 17.71 - 43.3 450 - 1100
Platen dimension mm inch 62.99 x 58.85 1600 x 1495
Tie-bar distance (H×V) mm inch 43.3 x 39.37 1100 x 1000
Open daylight-Max. mm inch 82.67 2100
Ejector stroke mm inch 10.23 260
General
Machine weight ton U.S ton 39.24 35.6
Machine dimensions mm inch 425.66 x 98.42 x 106.41 10812 x 2500 x 2703
Uncategorized
Injection Model S
