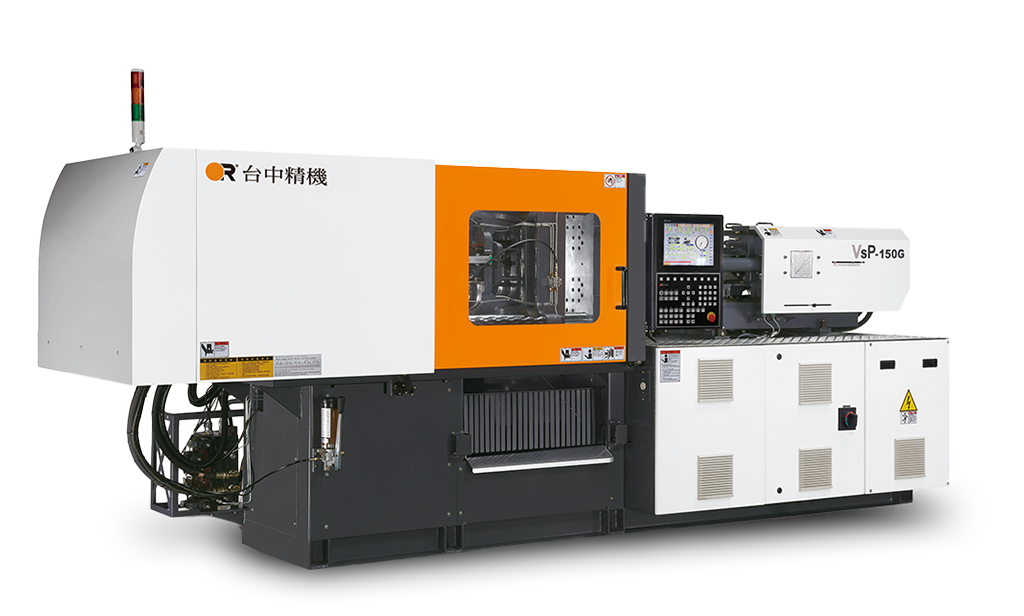

VsP-120

Hybrid Injection Molding Machine VsP

射座型式
- K
- M

This combination does not exist.

Add to Quote

Download

Specifications

Metric

Imperial

Add to Compare

Items

Unit

VsP-120 (K)

VsP-120 (M)

Injection Unit

Screw diameter

mm inch

28 - 32 - 36 1.1 - 1.25 - 1.41

32 - 36 - 40 1.25 - 1.41 - 1.57

Calculated injection capacity

cm³ in³

61.6 - 80.4 - 101.8 3.75 - 4.9 - 6.21

116.6 - 147.6 - 182.2 7.11 - 9 - 11.11

Actual shot weight-PS

g oz

58 - 75 - 95 2.0 - 2.7 - 3.4

109 - 138 - 171 3.8 - 4.9 - 6.0

Calculated plasticizing

kg/hr

36 - 52 - 71

40 - 54 - 72

Screw L/D ratio

mm inch

22.9 - 20.0 - 17.8 0.9 - 0.78 - 0.7

22.5 - 20.0 - 18.0 0.88 - 0.78 - 0.7

Screw stroke

mm inch

100 3.93

145 5.70

Clamping Unit

Clamping force

ton U.S ton

120 132.27

Clamp stroke - Max.

mm inch

360 14.17

Platen dimension

mm inch

600 x 600 23.62 x 23.62

Tie-bar distance (H×V)

mm inch

410 x 410 16.14 x 16.14

Open daylight-Max.

mm inch

790 31.10

Mold thickness (Min-Max.)

mm inch

150 - 430 5.9 - 16.92

Ejector stroke

mm inch

100 3.93

General

Machine weight

ton U.S ton

3.4 3.74

Machine dimensions (ES System option)

mm inch

4348 x 1231 x 2025 171.18 x 48.46 x 79.72

Add to quote

Specifications

Filter
Clamping force(ton)		120
Tie-bar distance (H×V)(mm)		410 × 410
Shot weight(g)	oz	58 - 75 - 95 2.0 - 2.7 - 3.4

Injection Unit
Screw diameter	mm inch	28 - 32 - 36 1.1 - 1.25 - 1.41
Calculated injection capacity	cm³ in³	61.6 - 80.4 - 101.8 3.75 - 4.9 - 6.21
Actual shot weight-PS	g oz	58 - 75 - 95 2.0 - 2.7 - 3.4
Calculated plasticizing		36 - 52 - 71
Screw L/D ratio	mm inch	22.9 - 20.0 - 17.8 0.9 - 0.78 - 0.7
Screw stroke	mm inch	100 3.93

Clamping Unit
Clamping force	ton U.S ton	120 132.27
Clamp stroke - Max.	mm inch	360 14.17
Platen dimension	mm inch	600 x 600 23.62 x 23.62
Tie-bar distance (H×V)	mm inch	410 x 410 16.14 x 16.14
Open daylight-Max.	mm inch	790 31.10
Mold thickness (Min-Max.)	mm inch	150 - 430 5.9 - 16.92
Ejector stroke	mm inch	100 3.93
