VsP-120

120 (K)
https://www.victortaichung.com/web/image/product.template/103/image_1920?unique=e012605

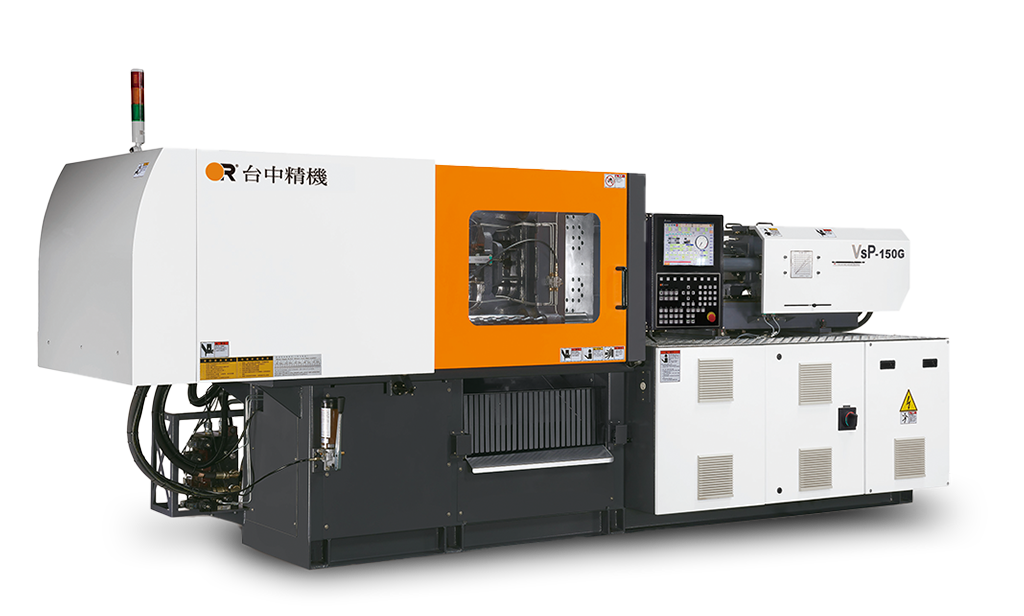

Hybrid Injection Molding Machine VsP

  • 射座型式

This combination does not exist.

Specifications

Previous
Next
Add to Compare
Items
Unit
Injection Unit
Screw diameter
mm inch
28 - 32 - 36 1.1 - 1.25 - 1.41
32 - 36 - 40 1.25 - 1.41 - 1.57
Calculated injection capacity
cm³ in³
61.6 - 80.4 - 101.8 3.75 - 4.9 - 6.21
116.6 - 147.6 - 182.2 7.11 - 9 - 11.11
Actual shot weight-PS
g oz
58 - 75 - 95 2.0 - 2.7 - 3.4
109 - 138 - 171 3.8 - 4.9 - 6.0
Calculated plasticizing
kg/hr
36 - 52 - 71
40 - 54 - 72
Screw L/D ratio
mm inch
22.9 - 20.0 - 17.8 0.9 - 0.78 - 0.7
22.5 - 20.0 - 18.0 0.88 - 0.78 - 0.7
Screw stroke
mm inch
100 3.93
145 5.70
Clamping Unit
Clamping force
ton U.S ton
120 132.27
120 132.27
Clamp stroke - Max.
mm inch
360 14.17
360 14.17
Mold thickness (Min-Max.)
mm inch
150 - 430 5.9 - 16.92
150 - 430 5.9 - 16.92
Platen dimension
mm inch
600 x 600 23.62 x 23.62
600 x 600 23.62 x 23.62
Tie-bar distance (H×V)
mm inch
410 x 410 16.14 x 16.14
410 x 410 16.14 x 16.14
Open daylight-Max.
mm inch
790 31.10
790 31.10
Ejector stroke
mm inch
100 3.93
100 3.93
General
Machine weight
ton U.S ton
3.4 3.74
3.4 3.74
Machine dimensions (ES System option)
mm inch
4348 x 1231 x 2025 171.18 x 48.46 x 79.72
4348 x 1231 x 2025 171.18 x 48.46 x 79.72
Uncategorized
射座型式
K
M
Add to Inquiry
Add to Inquiry
Add to Inquiry

Specifications

120 (M)
Filter
Clamping force(ton) 120
Tie-bar distance (H×V)(mm) 410 × 410
Shot weight(g) oz 2.0 - 2.7 - 3.4 58 - 75 - 95
Injection Unit
Screw diameter mm inch 1.1 - 1.25 - 1.41 28 - 32 - 36
Calculated injection capacity cm³ in³ 3.75 - 4.9 - 6.21 61.6 - 80.4 - 101.8
Actual shot weight-PS g oz 2.0 - 2.7 - 3.4 58 - 75 - 95
Calculated plasticizing 36 - 52 - 71
Screw L/D ratio mm inch 0.9 - 0.78 - 0.7 22.9 - 20.0 - 17.8
Screw stroke mm inch 3.93 100
Clamping Unit
Clamping force ton U.S ton 132.27 120
Clamp stroke - Max. mm inch 14.17 360
Mold thickness (Min-Max.) mm inch 5.9 - 16.92 150 - 430
Platen dimension mm inch 23.62 x 23.62 600 x 600
Tie-bar distance (H×V) mm inch 16.14 x 16.14 410 x 410
Open daylight-Max. mm inch 31.10 790
Ejector stroke mm inch 3.93 100
General
Machine weight ton U.S ton 3.74 3.4
Machine dimensions (ES System option) mm inch 171.18 x 48.46 x 79.72 4348 x 1231 x 2025
Uncategorized
射座型式 M
