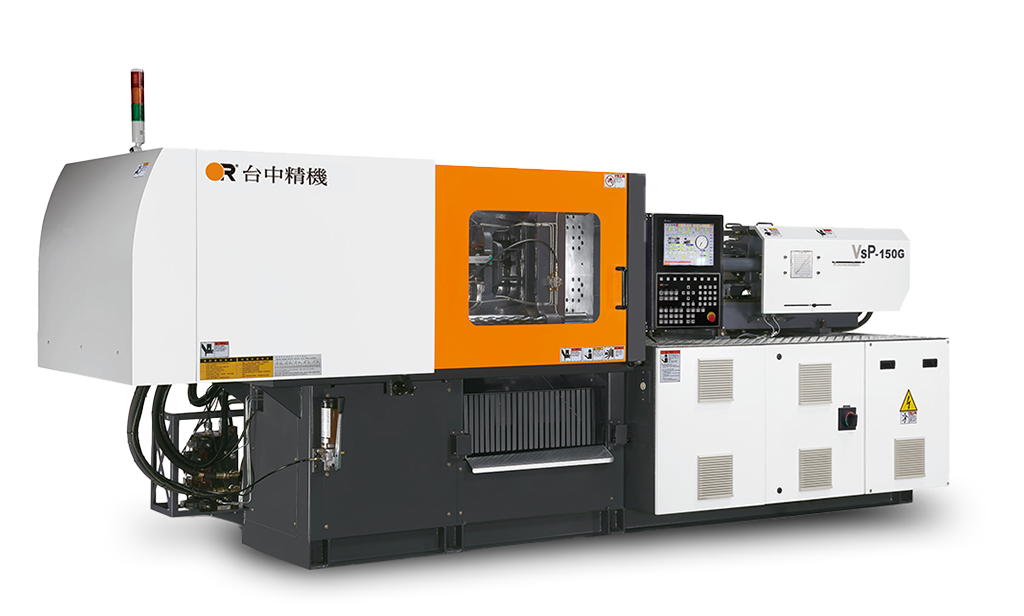

VsP-150

Hybrid Injection Molding Machine VsP

射座型式
- M
- G

This combination does not exist.

Add to Quote

Download

Specifications

Metric

Imperial

Add to Compare

Items

Unit

VsP-150 (M)

VsP-150 (G)

Injection Unit

Screw diameter

mm inch

32 - 36 - 40 1.25 - 1.41 - 1.57

36 - 40 - 46 1.41 - 1.57 - 1.81

Calculated injection capacity

cm³ in³

116.6 - 147.6 - 182.2 7.11 - 9 - 11.11

162.9 - 201.1 - 265.9 9.94 - 12.27 - 16.22

Actual shot weight-PS

g oz

109 - 138 - 171 3.8 - 4.9 - 6.0

153 - 188 - 249 5.4 - 6.6 - 8.8

Calculated plasticizing

kg/hr

49 - 68 - 90

58 - 77 - 114

Screw L/D ratio

mm inch

22.5 - 20.0 - 18.0 0.88 - 0.78 - 0.7

22.2 - 20.0 - 17.4 0.87 - 0.78 - 0.68

Screw stroke

mm inch

145 5.70

160 6.29

Clamping Unit

Clamping force

ton U.S ton

150 165.34

Clamp stroke - Max.

mm inch

400 15.74

Platen dimension

mm inch

660 x 660 25.98 x 25.98

Tie-bar distance (H×V)

mm inch

460 x 460 18.11 x 18.11

Open daylight-Max.

mm inch

850 33.46

Mold thickness (Min-Max.)

mm inch

150 - 450 5.9 - 17.71

Ejector stroke

mm inch

100 3.93

General

Machine weight

ton U.S ton

4 4.40

Machine dimensions (ES System option)

mm inch

4446 x 1280 x 2083 175.03 x 50.39 x 82

Add to quote

Specifications

Filter
Clamping force(ton)		150
Tie-bar distance (H×V)(mm)		460 × 460
Shot weight(g)	oz	109 - 138 - 171 3.8 - 4.9 - 6.0

Injection Unit
Screw diameter	mm inch	32 - 36 - 40 1.25 - 1.41 - 1.57
Calculated injection capacity	cm³ in³	116.6 - 147.6 - 182.2 7.11 - 9 - 11.11
Actual shot weight-PS	g oz	109 - 138 - 171 3.8 - 4.9 - 6.0
Calculated plasticizing		49 - 68 - 90
Screw L/D ratio	mm inch	22.5 - 20.0 - 18.0 0.88 - 0.78 - 0.7
Screw stroke	mm inch	145 5.70

Clamping Unit
Clamping force	ton U.S ton	150 165.34
Clamp stroke - Max.	mm inch	400 15.74
Platen dimension	mm inch	660 x 660 25.98 x 25.98
Tie-bar distance (H×V)	mm inch	460 x 460 18.11 x 18.11
Open daylight-Max.	mm inch	850 33.46
Mold thickness (Min-Max.)	mm inch	150 - 450 5.9 - 17.71
Ejector stroke	mm inch	100 3.93
