VsP-60

60 (S)
https://www.victortaichung.com/web/image/product.template/98/image_1920?unique=9be7b6c

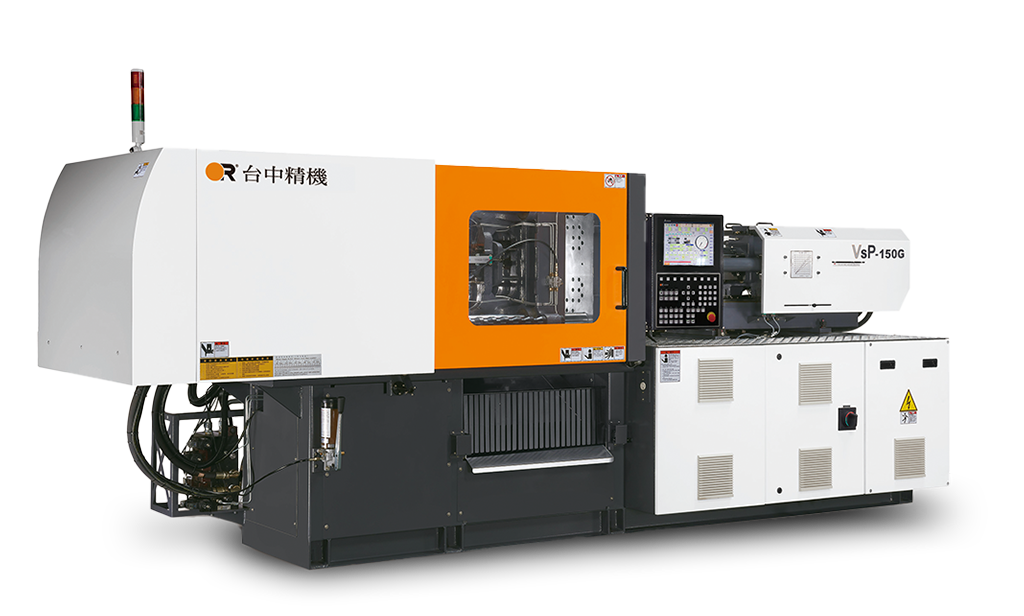

Hybrid Injection Molding Machine VsP

  • 射座型式

This combination does not exist.

Specifications

Previous
Next
Add to Compare
Items
Unit
Injection Unit
Screw diameter
mm inch
22 - 25 0.86 - 0.98
28 - 32 - 36 1.1 - 1.25 - 1.41
Calculated injection capacity
cm³ in³
38.0 - 49.1 2.31 - 2.99
61.6 - 80.4 - 101.8 3.75 - 4.9 - 6.21
Actual shot weight-PS
g oz
36 - 46 1.3 - 1.6
58 - 75 - 95 2.0 - 2.7 - 3.4
Calculated plasticizing
kg/hr
20 - 29
36 - 52 - 71
Screw L/D ratio
mm inch
22.7 - 20.0 0.89 - 0.78
22.9 - 20.0 - 17.8 0.9 - 0.78 - 0.7
Screw stroke
mm inch
100 3.93
100 3.93
Clamping Unit
Clamping force
ton U.S ton
60 66.13
60 66.13
Clamp stroke - Max.
mm inch
270 10.62
270 10.62
Mold thickness (Min-Max.)
mm inch
150 - 320 5.9 - 12.59
150 - 320 5.9 - 12.59
Platen dimension
mm inch
460 x 465 18.11 x 18.3
460 x 465 18.11 x 18.3
Tie-bar distance (H×V)
mm inch
310 x 310 12.2 x 12.2
310 x 310 12.2 x 12.2
Open daylight-Max.
mm inch
590 23.22
590 23.22
Ejector stroke
mm inch
80 3.14
80 3.14
General
Machine weight
ton U.S ton
2.3 2.53
2.3 2.53
Machine dimensions (ES System option)
mm inch
3876 x 1095 x 1918 152.59 x 43.11 x 75.51
3876 x 1095 x 1918 152.59 x 43.11 x 75.51
Uncategorized
射座型式
S
K
Add to Inquiry
Add to Inquiry
Add to Inquiry

Specifications

60 (K)
Filter
Clamping force(ton) 60
Tie-bar distance (H×V)(mm) 310 × 310
Shot weight(g) oz 1.3 - 1.6 36 - 46
Injection Unit
Screw diameter mm inch 0.86 - 0.98 22 - 25
Calculated injection capacity cm³ in³ 2.31 - 2.99 38.0 - 49.1
Actual shot weight-PS g oz 1.3 - 1.6 36 - 46
Calculated plasticizing 20 - 29
Screw L/D ratio mm inch 0.89 - 0.78 22.7 - 20.0
Screw stroke mm inch 3.93 100
Clamping Unit
Clamping force ton U.S ton 66.13 60
Clamp stroke - Max. mm inch 10.62 270
Mold thickness (Min-Max.) mm inch 5.9 - 12.59 150 - 320
Platen dimension mm inch 18.11 x 18.3 460 x 465
Tie-bar distance (H×V) mm inch 12.2 x 12.2 310 x 310
Open daylight-Max. mm inch 23.22 590
Ejector stroke mm inch 3.14 80
General
Machine weight ton U.S ton 2.53 2.3
Machine dimensions (ES System option) mm inch 152.59 x 43.11 x 75.51 3876 x 1095 x 1918
Uncategorized
射座型式 K
