VsP-90
90 (S)

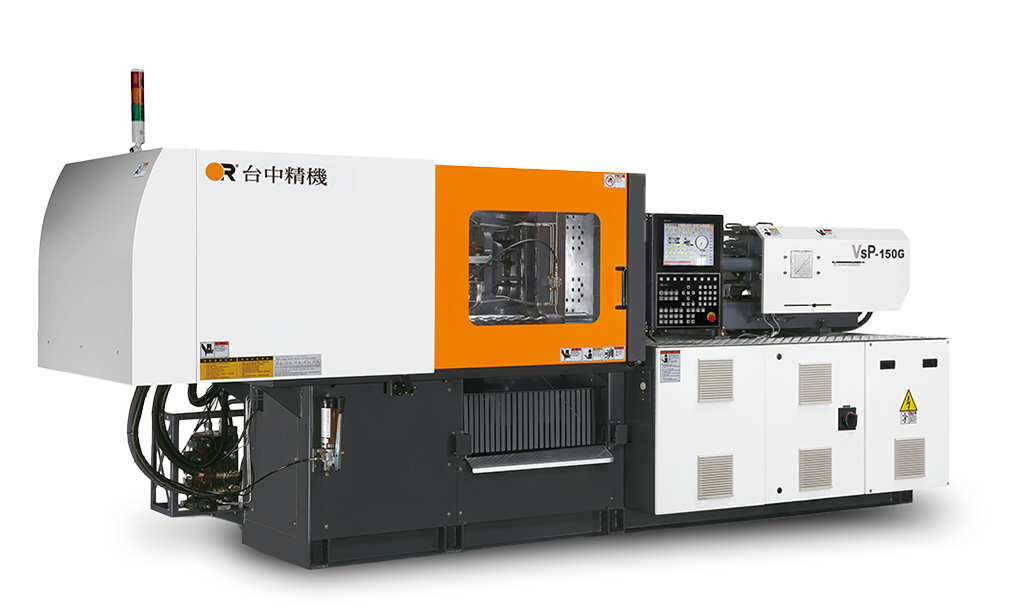

Hybrid Injection Molding Machine VsP
Specifications
Add to
Compare
Items
Unit
Injection Unit
Screw diameter
mm
inch
22 - 25
0.86 - 0.98
28 - 32 - 36
1.1 - 1.25 - 1.41
32 - 36 - 40
1.25 - 1.41 - 1.57
Calculated injection capacity
cm³
in³
38.0 - 49.1
2.31 - 2.99
61.6 - 80.4 - 101.8
3.75 - 4.9 - 6.21
116.6 - 147.6 - 182.2
7.11 - 9 - 11.11
Actual shot weight-PS
g
oz
36 - 46
1.3 - 1.6
58 - 75 - 95
2.0 - 2.7 - 3.4
109 - 138 - 171
3.8 - 4.9 - 6.0
Calculated plasticizing
kg/hr
20 - 29
36 - 52 - 71
40 - 54 - 72
Screw L/D ratio
mm
inch
22.7 - 20.0
0.89 - 0.78
22.9 - 20.0 - 17.8
0.9 - 0.78 - 0.7
22.5 - 20.0 - 18.0
0.88 - 0.78 - 0.7
Screw stroke
mm
inch
100
3.93
100
3.93
145
5.70
Clamping Unit
Clamping force
ton
U.S ton
90
99.20
90
99.20
90
99.20
Clamp stroke - Max.
mm
inch
320
12.59
320
12.59
320
12.59
Mold thickness (Min-Max.)
mm
inch
150 - 350
5.9 - 13.77
150 - 350
5.9 - 13.77
150 - 350
5.9 - 13.77
Platen dimension
mm
inch
545 x 540
21.45 x 21.25
545 x 540
21.45 x 21.25
545 x 540
21.45 x 21.25
Tie-bar distance (H×V)
mm
inch
360 x 360
14.17 x 14.17
360 x 360
14.17 x 14.17
360 x 360
14.17 x 14.17
Open daylight-Max.
mm
inch
670
26.37
670
26.37
670
26.37
Ejector stroke
mm
inch
100
3.93
100
3.93
100
3.93
General
Machine weight
ton
U.S ton
2.8
3.08
2.8
3.08
2.8
3.08
Machine dimensions (ES System option)
mm
inch
4122 x 1265 x 1932
162.28 x 49.8 x 76.06
4122 x 1265 x 1932
162.28 x 49.8 x 76.06
4122 x 1265 x 1932
162.28 x 49.8 x 76.06
Uncategorized
射座型式
S
K
M
Add to Inquiry
Specifications
90 (M)
| Filter | ||
|---|---|---|
| Clamping force(ton) | 90 | |
| Tie-bar distance (H×V)(mm) | 360 × 360 | |
| Shot weight(g) | oz | 1.3 - 1.6 36 - 46 |
| Injection Unit | ||
|---|---|---|
| Screw diameter | mm inch | 0.86 - 0.98 22 - 25 |
| Calculated injection capacity | cm³ in³ | 2.31 - 2.99 38.0 - 49.1 |
| Actual shot weight-PS | g oz | 1.3 - 1.6 36 - 46 |
| Calculated plasticizing | 20 - 29 | |
| Screw L/D ratio | mm inch | 0.89 - 0.78 22.7 - 20.0 |
| Screw stroke | mm inch | 3.93 100 |
| Clamping Unit | ||
|---|---|---|
| Clamping force | ton U.S ton | 99.20 90 |
| Clamp stroke - Max. | mm inch | 12.59 320 |
| Mold thickness (Min-Max.) | mm inch | 5.9 - 13.77 150 - 350 |
| Platen dimension | mm inch | 21.45 x 21.25 545 x 540 |
| Tie-bar distance (H×V) | mm inch | 14.17 x 14.17 360 x 360 |
| Open daylight-Max. | mm inch | 26.37 670 |
| Ejector stroke | mm inch | 3.93 100 |
| General | ||
|---|---|---|
| Machine weight | ton U.S ton | 3.08 2.8 |
| Machine dimensions (ES System option) | mm inch | 162.28 x 49.8 x 76.06 4122 x 1265 x 1932 |
| Uncategorized | ||
|---|---|---|
| 射座型式 | M | |
