VsP-90
90 (S)

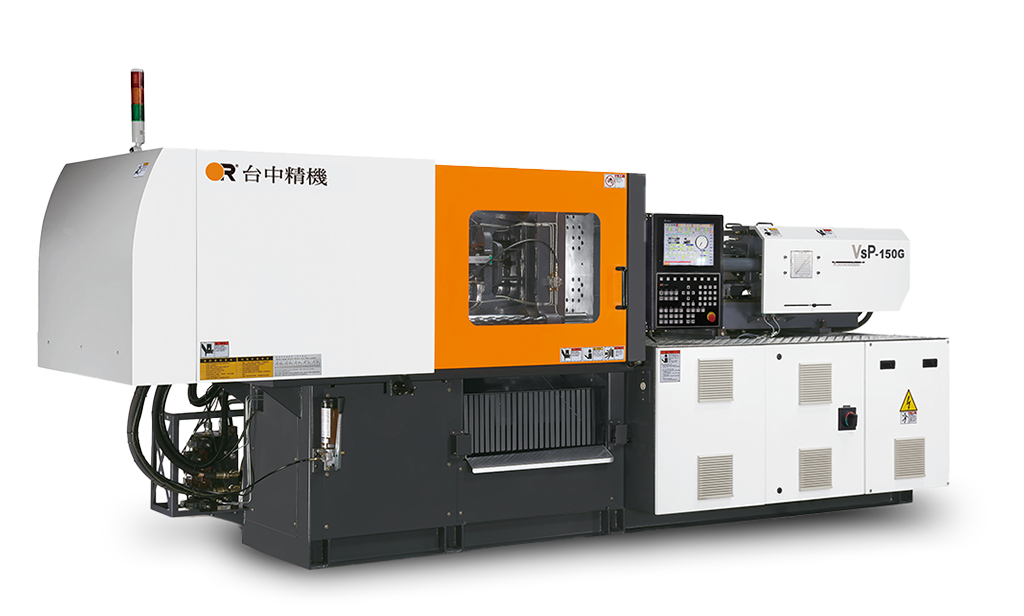

Hybrid Injection Molding Machine VsP
Specifications
Add to
Compare
Items
Unit
Injection Unit
Screw diameter
mm
inch
22 - 25
0.86 - 0.98
28 - 32 - 36
1.1 - 1.25 - 1.41
32 - 36 - 40
1.25 - 1.41 - 1.57
Calculated injection capacity
cm³
in³
38.0 - 49.1
2.31 - 2.99
61.6 - 80.4 - 101.8
3.75 - 4.9 - 6.21
116.6 - 147.6 - 182.2
7.11 - 9 - 11.11
Actual shot weight-PS
g
oz
36 - 46
1.3 - 1.6
58 - 75 - 95
2.0 - 2.7 - 3.4
109 - 138 - 171
3.8 - 4.9 - 6.0
Calculated plasticizing
kg/hr
20 - 29
36 - 52 - 71
40 - 54 - 72
Screw L/D ratio
mm
inch
22.7 - 20.0
0.89 - 0.78
22.9 - 20.0 - 17.8
0.9 - 0.78 - 0.7
22.5 - 20.0 - 18.0
0.88 - 0.78 - 0.7
Screw stroke
mm
inch
100
3.93
100
3.93
145
5.70
Clamping Unit
Clamping force
ton
U.S ton
90
99.20
90
99.20
90
99.20
Clamp stroke - Max.
mm
inch
320
12.59
320
12.59
320
12.59
Platen dimension
mm
inch
545 x 540
21.45 x 21.25
545 x 540
21.45 x 21.25
545 x 540
21.45 x 21.25
Tie-bar distance (H×V)
mm
inch
360 x 360
14.17 x 14.17
360 x 360
14.17 x 14.17
360 x 360
14.17 x 14.17
Open daylight-Max.
mm
inch
670
26.37
670
26.37
670
26.37
Mold thickness (Min-Max.)
mm
inch
150 - 350
5.9 - 13.77
150 - 350
5.9 - 13.77
150 - 350
5.9 - 13.77
Ejector stroke
mm
inch
100
3.93
100
3.93
100
3.93
General
Machine weight
ton
U.S ton
2.8
3.08
2.8
3.08
2.8
3.08
Machine dimensions (ES System option)
mm
inch
4122 x 1265 x 1932
162.28 x 49.8 x 76.06
4122 x 1265 x 1932
162.28 x 49.8 x 76.06
4122 x 1265 x 1932
162.28 x 49.8 x 76.06
Add to Inquiry
Specifications
90 (M)
| Filter | ||
|---|---|---|
| Clamping force(ton) | 90 | |
| Tie-bar distance (H×V)(mm) | 360 × 360 | |
| Shot weight(g) | oz | 36 - 46 1.3 - 1.6 |
| Injection Unit | ||
|---|---|---|
| Screw diameter | mm inch | 22 - 25 0.86 - 0.98 |
| Calculated injection capacity | cm³ in³ | 38.0 - 49.1 2.31 - 2.99 |
| Actual shot weight-PS | g oz | 36 - 46 1.3 - 1.6 |
| Calculated plasticizing | 20 - 29 | |
| Screw L/D ratio | mm inch | 22.7 - 20.0 0.89 - 0.78 |
| Screw stroke | mm inch | 100 3.93 |
| Clamping Unit | ||
|---|---|---|
| Clamping force | ton U.S ton | 90 99.20 |
| Clamp stroke - Max. | mm inch | 320 12.59 |
| Platen dimension | mm inch | 545 x 540 21.45 x 21.25 |
| Tie-bar distance (H×V) | mm inch | 360 x 360 14.17 x 14.17 |
| Open daylight-Max. | mm inch | 670 26.37 |
| Mold thickness (Min-Max.) | mm inch | 150 - 350 5.9 - 13.77 |
| Ejector stroke | mm inch | 100 3.93 |
| General | ||
|---|---|---|
| Machine weight | ton U.S ton | 2.8 3.08 |
| Machine dimensions (ES System option) | mm inch | 4122 x 1265 x 1932 162.28 x 49.8 x 76.06 |
| Uncategorized | ||
|---|---|---|
| 射座型式 | M | |
