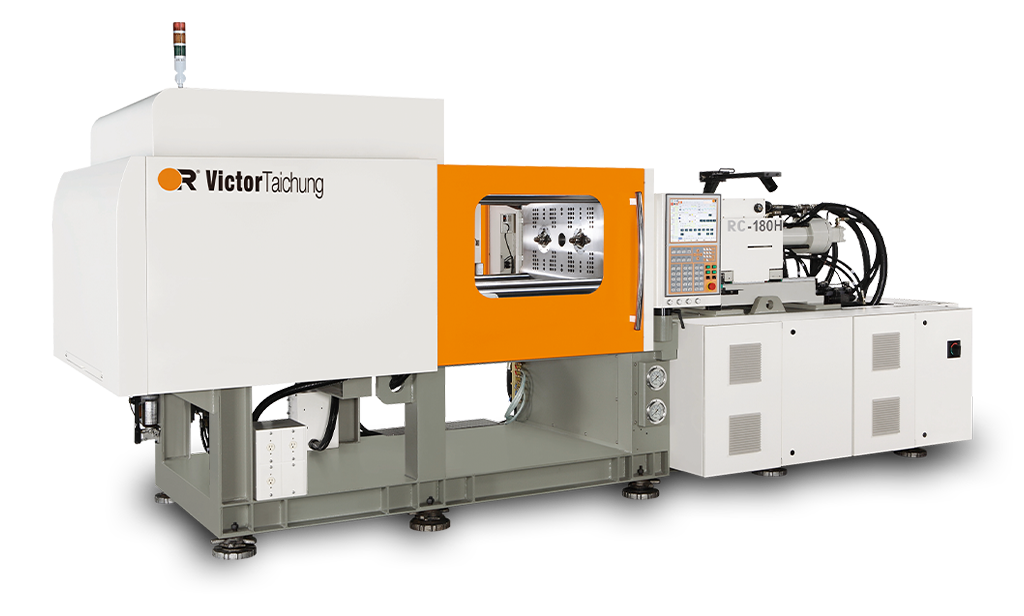

RC-350

350 (H)
https://machine-tools.victortaichung.com/web/image/product.template/188/image_1920?unique=f5ce11a

Two Shot Injection Molding Machine RC

  • 射座型式

This combination does not exist.

Specifications

Previous
Next
Add to Compare
Items
Unit
Injection Unit
Screw diameter
mm inch
32 - 36 - 40 1.25 - 1.41 - 1.57
40 - 46 - 52 1.57 - 1.81 - 2.04
46 - 52 - 60 1.81 - 2.04 - 2.36
Screw ratio(L/D)
22.5 - 20 - 18
23 - 20 - 17.7
22.6 - 20 - 17.3
Calculated injection capacity
cm³ in³
129 - 163 - 201 7.87 - 9.94 - 12.26
251 - 332 - 425 15.31 - 20.25 - 25.93
399 - 510 - 679 24.34 - 31.12 - 41.43
Screw stroke
mm inch
160 6.29
200 7.87
240 9.44
Total heating wattage
KW HP
6.83 9.15
8.07 10.81
12.95 17.35
Clamping Unit
Clamping force
ton U.S ton
350 385.80
350 385.80
350 385.80
Nozzle center height
mm inch
550 21.65
550 21.65
550 21.65
Clamp stroke
mm inch
660 25.98
660 25.98
660 25.98
Tie-bar distance (H×V)
mm inch
1020 x 560 40.15 x 22.04
1020 x 560 40.15 x 22.04
1020 x 560 40.15 x 22.04
Rotary table diameter
mm inch
1160 45.66
1160 45.66
1160 45.66
Mold thickness (Min-Max.)
mm inch
120 - 650 4.72 - 25.59
120 - 650 4.72 - 25.59
120 - 650 4.72 - 25.59
Ejector stroke
mm inch
180 7.08
180 7.08
180 7.08
General
Servo motor (Standard)
KW HP
11+11 14+14
20+20 26+26
20+20 26+26
Machine weight
ton U.S ton
25 27.55
25 27.55
25 27.55
Machine dimensions
mm inch
6770 x 2227 x 2276 266.53 x 87.67 x 89.6
6770 x 2227 x 2276 266.53 x 87.67 x 89.6
6770 x 2227 x 2276 266.53 x 87.67 x 89.6
Add to Inquiry
Add to Inquiry
Add to Inquiry
Add to Inquiry

Specifications

350 (F)
Filter
Clamping force(ton) 350
Tie-bar distance (H×V)(mm) 1020 x 560
Injection Unit
Screw diameter mm inch 1.25 - 1.41 - 1.57 32 - 36 - 40
Screw ratio(L/D) 22.5 - 20 - 18
Calculated injection capacity cm³ in³ 7.87 - 9.94 - 12.26 129 - 163 - 201
Screw stroke mm inch 6.29 160
Total heating wattage KW HP 9.15 6.83
Clamping Unit
Clamping force ton U.S ton 385.80 350
Nozzle center height mm inch 21.65 550
Clamp stroke mm inch 25.98 660
Tie-bar distance (H×V) mm inch 40.15 x 22.04 1020 x 560
Rotary table diameter mm inch 45.66 1160
Mold thickness (Min-Max.) mm inch 4.72 - 25.59 120 - 650
Ejector stroke mm inch 7.08 180
General
Servo motor (Standard) KW HP 14+14 11+11
Machine weight ton U.S ton 27.55 25
Machine dimensions mm inch 266.53 x 87.67 x 89.6 6770 x 2227 x 2276
Uncategorized
射座型式 F
