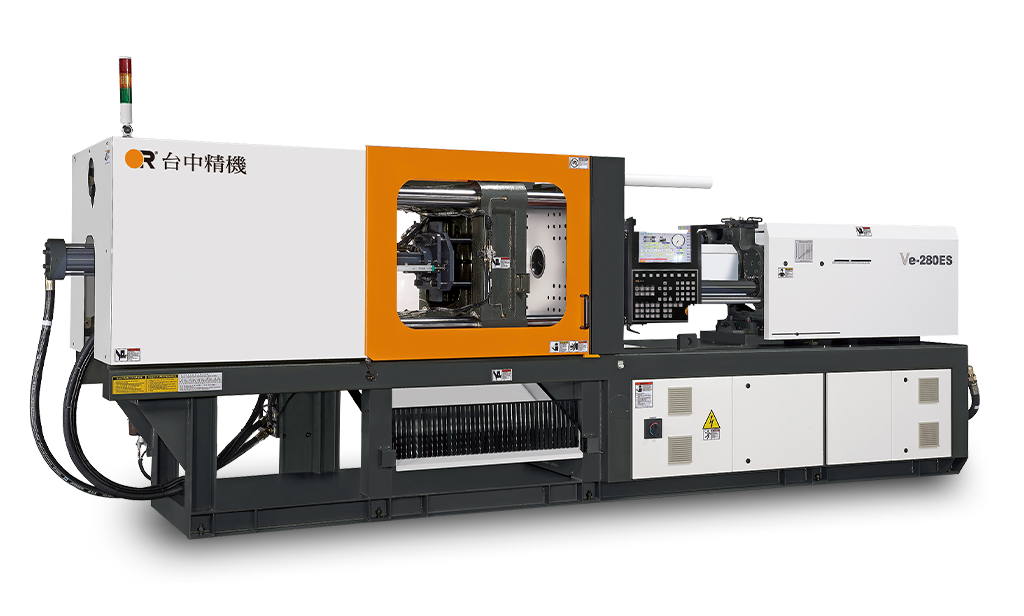

Ve-280
280
Hydraulic Clamping Injection Molding Machine VE
Specifications
Add to
Compare
Items
Unit
Injection Unit
Calculated injection capacity
cm³
in³
641 - 763 - 896 - 1039
39.11 - 46.56 - 54.67 - 63.4
Actual shot weight-PS
g
oz
601 - 716 - 840 - 974
21.2 - 25.2 - 29.6 - 34.3
Actual plasticizing capacity- PS
kg/hr
114 - 140 - 164 - 199
Injection pressure-Max.
kgf/cm2
Psi
2065 - 1735 - 1479 - 1275
29370 - 24676 - 21035 - 18134
Screw diameter
mm
inch
55 - 60 - 65 - 70
2.16 - 2.36 - 2.55 - 2.75
Screw L/D ratio
22 - 20 - 18 - 17
Screw stroke
mm
inch
270
10.62
Nozzle stroke
mm
inch
450
17.71
Clamping Unit
Clamping force
ton
U.S ton
280
308.64
Clamp stroke - Max.
mm
inch
580
22.83
Platen dimension
mm
inch
820 x 820
32.28 x 32.28
Tie-bar distance (H×V)
mm
inch
605 x 605
23.81 x 23.81
Open daylight-Max.
mm
inch
1230
48.42
Mold thickness (Min-Max.)
mm
inch
250 - 650
9.84 - 25.59
Ejector stroke
mm
inch
170
6.69
General
Machine weight
ton
U.S ton
9.4
10.36
Machine dimensions
mm
inch
7200 x 1500 x 2300
283.46 x 59.05 x 90.55
Add to Inquiry
Specifications
280
| Filter | ||
|---|---|---|
| Clamping force(ton) | 280 | |
| Tie-bar distance (H×V)(mm) | 605× 605 | |
| Shot weight(g) | oz | 21.2 - 25.2 - 29.6 - 34.3 601 - 716 - 840 - 974 |
| Injection Unit | ||
|---|---|---|
| Calculated injection capacity | cm³ in³ | 39.11 - 46.56 - 54.67 - 63.4 641 - 763 - 896 - 1039 |
| Actual shot weight-PS | g oz | 21.2 - 25.2 - 29.6 - 34.3 601 - 716 - 840 - 974 |
| Actual plasticizing capacity- PS | 114 - 140 - 164 - 199 | |
| Injection pressure-Max. | kgf/cm2 Psi | 29370 - 24676 - 21035 - 18134 2065 - 1735 - 1479 - 1275 |
| Screw diameter | mm inch | 2.16 - 2.36 - 2.55 - 2.75 55 - 60 - 65 - 70 |
| Screw L/D ratio | 22 - 20 - 18 - 17 | |
| Screw stroke | mm inch | 10.62 270 |
| Nozzle stroke | mm inch | 17.71 450 |
| Clamping Unit | ||
|---|---|---|
| Clamping force | ton U.S ton | 308.64 280 |
| Clamp stroke - Max. | mm inch | 22.83 580 |
| Platen dimension | mm inch | 32.28 x 32.28 820 x 820 |
| Tie-bar distance (H×V) | mm inch | 23.81 x 23.81 605 x 605 |
| Open daylight-Max. | mm inch | 48.42 1230 |
| Mold thickness (Min-Max.) | mm inch | 9.84 - 25.59 250 - 650 |
| Ejector stroke | mm inch | 6.69 170 |
| General | ||
|---|---|---|
| Machine weight | ton U.S ton | 10.36 9.4 |
| Machine dimensions | mm inch | 283.46 x 59.05 x 90.55 7200 x 1500 x 2300 |
| Uncategorized | ||
|---|---|---|
| 射出單元 | － | |
